Inconsistent namelist option descriptions

This post was from a previous version of the WRF&MPAS-A Support Forum. New replies have been disabled and if you have follow up questions related to this post, then please start a new thread from the forum home page.

lucaschen

New member

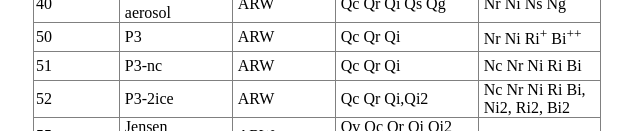

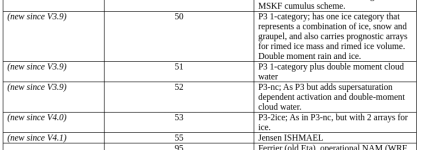

Hi, I'm now preparing a WRF V4.1.4 simulation, and got some confusion with the namelist.input options. For the microphysics options, the user guide points option 52 to different schemes (https://www2.mmm.ucar.edu/wrf/users/docs/user_guide_v4/v4.0/users_guide_chap5.html#Summary_MP_options). In the second table of "Summary of Microphysics Options", code 52 is P3-ice. But in the details of namelist options ("Description of Namelist Variables"), code 52 points to P3-nc. I am wondering which is the correct information? And if anyone has done a complete check of these tables (as there might be other inconsistencies I have not noticed)? Thanks!


Attachments

  • MP_table.png
    58.2 KB · Views: 429
  • MP_table2.png
    21.6 KB · Views: 429
Below is the correct information for P3:

mp_physics = 50, P3 1-category
mp_physics = 51, P3 1-category plus double-moment cloud water, this is p3-nc
mp_physics==52 P3 2-category, this is p3-ice
