Problems in LU_INDEX in nested domain

[srinaldi]

Hello!
I'm running a simulation using a namelist provided during a wrf tutorial (attached below) which uses the NLCD dataset for static data. Everything seems to be ok for the first domain, while the second domain shows some problems with the LU_INDEX variable (see the image below). I noticed that this problem arises because of the subgrid_ratio_[xy] option active (I'm running a fire simulation hence I need a refinement on the second domain). I don't know if the problem is in my static data (I downloaded again from the static data download page) or what, can someone help?
Thank you in advance!

Simona



[Ming Chen]

Can you clarify the issue? It is hard to read the png files.

Also, in your namelist.wps,

geog_data_res = 'default', 'default'

Which indicates that you use Modis instead of NLCD as input.



[srinaldi]

Hello,

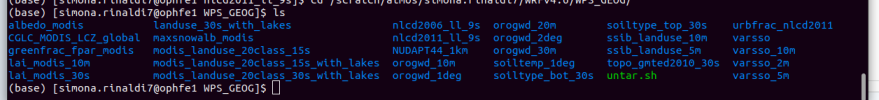

sorry for the late response! I use NLCD datasets in geog_data_res because I'm trying to reproduce the case exactly as done by the tutorial and the reference material (everything is in this github repository), so I'm using the namelist from the tutorial and try to run the case using my WPS_GEOG.
To clarify the issue with LU_INDEX I downloaded the .ps file from ncview, I hope this helps.
Thank you.

Simona
