gc13141112
New member

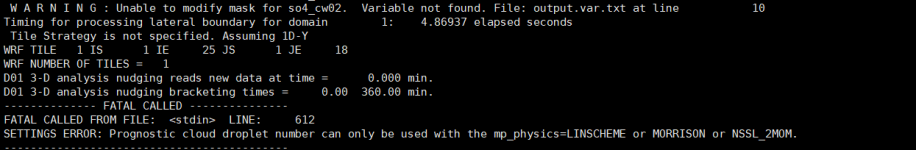

We use WRF-Chem v3.9.1 to simulate aerosol feedback by CAM5 physics and run some errors. Errors log are in attachments. My namelist.input setting as follows. Can someone explain these? Thanks for your help in advance!
&time_control
run_days = 1,
run_hours = 0,
run_minutes = 0,
run_seconds = 0,
start_year = 2018, 2999, 2999,
start_month = 11, 06, 06,
start_day = 29, 11, 11,
start_hour = 00, 12, 12,
start_minute = 00, 00, 00,
start_second = 00, 00, 00,
end_year = 2018, 2999, 2999,
end_month = 11, 06, 06,
end_day = 30, 12, 12,
end_hour = 00, 12, 12,
end_minute = 00, 00, 00,
end_second = 00, 00, 00,
interval_seconds = 21600
input_from_file = .true.,.true.,.true.,
history_interval = 60, 60, 60,
frames_per_outfile = 24, 1000, 1000,
restart = .false.,
restart_interval = 4320,
io_form_history = 2,
io_form_restart = 2,
io_form_input = 2,
io_form_boundary = 2,
io_form_auxinput4 = 2,
auxinput1_inname = "met_em.d<domain>.<date>",
auxinput6_inname = 'wrfbiochemi_d01',
auxinput7_inname = 'wrffirechemi_d01',
auxinput8_inname = 'wrfchemi_gocart_bg_d<domain>',
auxinput12_inname = 'wrf_chem_input',
auxinput5_interval_m = 60, 60, 60,
auxinput7_interval_m = 21600, 21600, 21600,
frames_per_auxinput5 = 1000,
io_form_auxinput5 = 2,
io_form_auxinput6 = 2,
io_form_auxinput7 = 0,
io_form_auxinput8 = 0,
io_form_auxinput12 = 0,
io_form_auxinput13 = 0,
io_form_auxinput14 = 0,
io_form_auxinput15 = 0,
debug_level = 0
iofields_filename = "output.var.txt"
/
&domains
time_step = 180,
time_step_fract_num = 0,
time_step_fract_den = 1,
max_dom = 1,
e_we = 198, 112, 94,
e_sn = 178, 97, 91,
e_vert = 30, 30, 30,
dx = 27000, 20000, 6666.66,
dy = 27000, 20000, 6666.66,
p_top_requested = 5000,
num_metgrid_levels = 32,
num_metgrid_soil_levels = 4,
grid_id = 1, 2, 3,
parent_id = 0, 1, 2,
i_parent_start = 1, 30, 30,
j_parent_start = 1, 20, 30,
parent_grid_ratio = 1, 3, 3,
parent_time_step_ratio = 1, 3, 3,
feedback = 1,
smooth_option = 0
p_top_requested = 5000
zap_close_levels = 50
interp_type = 1
t_extrap_type = 2
force_sfc_in_vinterp = 0
use_levels_below_ground = .true.
use_surface = .true.
lagrange_order = 1
/
sfcp_to_sfcp = .true.
&physics
mp_physics = 11, 2, 2,
progn = 1, 0, 0,
ra_lw_physics = 4, 1, 1,
ra_sw_physics = 4, 2, 2,
radt = 30, 10, 10,
sf_sfclay_physics = 1, 1, 1,
sf_surface_physics = 2, 2, 2,
bl_pbl_physics = 9, 1, 1,
bldt = 1, 0, 0,
cu_physics = 7, 5, 0,
cudt = 1, 1, 1,
shcu_physics = 2,
ishallow = 0,
isfflx = 1,
ifsnow = 1,
icloud = 1,
surface_input_source = 1,
num_soil_layers = 4,
num_land_cat = 20,
sf_urban_physics = 0, 0, 0,
mp_zero_out = 2,
mp_zero_out_thresh = 1.e-12
maxiens = 1,
maxens = 3,
maxens2 = 3,
maxens3 = 16,
ensdim = 144,
/
&fdda
/
&dynamics
rk_ord = 3,
w_damping = 1,
diff_opt = 1, 1, 1,
km_opt = 4, 4, 4,
diff_6th_opt = 0, 0, 0,
diff_6th_factor = 0.12, 0.12, 0.12,
base_temp = 290.
damp_opt = 0,
zdamp = 5000., 5000., 5000.,
dampcoef = 0.01, 0.2, 0.2
khdif = 0, 0, 0,
kvdif = 0, 0, 0,
non_hydrostatic = .true., .true., .true.,
moist_adv_opt = 2, 1, 1,
scalar_adv_opt = 2, 1, 1,
chem_adv_opt = 2, 1, 1,
time_step_sound = 4, 4, 4,
h_mom_adv_order = 5, 5, 5,
v_mom_adv_order = 3, 3, 3,
h_sca_adv_order = 5, 5, 5,
v_sca_adv_order = 3, 3, 3,
/
&bdy_control
spec_bdy_width = 5,
spec_zone = 1,
relax_zone = 4,
specified = .true., .false.,.false.,
nested = .false., .true., .true.,
/
&grib2
/
&namelist_quilt
nio_tasks_per_group = 0,
nio_groups = 1,
/
&chem
kemit = 6,
chem_opt = 503, 2,
bioemdt = 30,
photdt = 30, 30,
chemdt = 0, 2.,
io_style_emissions = 2,
emiss_inpt_opt = 104, 1,
emiss_opt = 9, 3,
emiss_opt_vol = 0, 0,
emiss_ash_hgt = 20000.,
chem_in_opt = 0, 0,
phot_opt = 2, 1,
gas_drydep_opt = 1, 1,
aer_drydep_opt = 1, 1,
bio_emiss_opt = 3, 1,
ne_area = 134,
depo_fact = 0.25,
dmsemis_opt = 0,
seas_opt = 0,
gas_bc_opt = 1, 1,
gas_ic_opt = 1, 1,
aer_bc_opt = 1, 1,
aer_ic_opt = 1, 1,
gaschem_onoff = 1, 1,
aerchem_onoff = 1, 1,
wetscav_onoff = 1, 0,
cldchem_onoff = 1, 0,
vertmix_onoff = 1, 1,
chem_conv_tr = 0,
conv_tr_wetscav = 1, 0,
conv_tr_aqchem = 1, 0,
biomass_burn_opt = 0, 0,
plumerisefire_frq = 30, 30,
aer_ra_feedback = 1, 0,
aer_op_opt = 1,
opt_pars_out = 1,
chemdiag = 0,
have_bcs_chem = .false., .false.,
cam_mam_mode = 3,
/
&time_control
run_days = 1,
run_hours = 0,
run_minutes = 0,
run_seconds = 0,
start_year = 2018, 2999, 2999,
start_month = 11, 06, 06,
start_day = 29, 11, 11,
start_hour = 00, 12, 12,
start_minute = 00, 00, 00,
start_second = 00, 00, 00,
end_year = 2018, 2999, 2999,
end_month = 11, 06, 06,
end_day = 30, 12, 12,
end_hour = 00, 12, 12,
end_minute = 00, 00, 00,
end_second = 00, 00, 00,
interval_seconds = 21600
input_from_file = .true.,.true.,.true.,
history_interval = 60, 60, 60,
frames_per_outfile = 24, 1000, 1000,
restart = .false.,
restart_interval = 4320,
io_form_history = 2,
io_form_restart = 2,
io_form_input = 2,
io_form_boundary = 2,
io_form_auxinput4 = 2,
auxinput1_inname = "met_em.d<domain>.<date>",
auxinput6_inname = 'wrfbiochemi_d01',
auxinput7_inname = 'wrffirechemi_d01',
auxinput8_inname = 'wrfchemi_gocart_bg_d<domain>',
auxinput12_inname = 'wrf_chem_input',
auxinput5_interval_m = 60, 60, 60,
auxinput7_interval_m = 21600, 21600, 21600,
frames_per_auxinput5 = 1000,
io_form_auxinput5 = 2,
io_form_auxinput6 = 2,
io_form_auxinput7 = 0,
io_form_auxinput8 = 0,
io_form_auxinput12 = 0,
io_form_auxinput13 = 0,
io_form_auxinput14 = 0,
io_form_auxinput15 = 0,
debug_level = 0
iofields_filename = "output.var.txt"
/
&domains
time_step = 180,
time_step_fract_num = 0,
time_step_fract_den = 1,
max_dom = 1,
e_we = 198, 112, 94,
e_sn = 178, 97, 91,
e_vert = 30, 30, 30,
dx = 27000, 20000, 6666.66,
dy = 27000, 20000, 6666.66,
p_top_requested = 5000,
num_metgrid_levels = 32,
num_metgrid_soil_levels = 4,
grid_id = 1, 2, 3,
parent_id = 0, 1, 2,
i_parent_start = 1, 30, 30,
j_parent_start = 1, 20, 30,
parent_grid_ratio = 1, 3, 3,
parent_time_step_ratio = 1, 3, 3,
feedback = 1,
smooth_option = 0
p_top_requested = 5000
zap_close_levels = 50
interp_type = 1
t_extrap_type = 2
force_sfc_in_vinterp = 0
use_levels_below_ground = .true.
use_surface = .true.
lagrange_order = 1
/
sfcp_to_sfcp = .true.
&physics
mp_physics = 11, 2, 2,
progn = 1, 0, 0,
ra_lw_physics = 4, 1, 1,
ra_sw_physics = 4, 2, 2,
radt = 30, 10, 10,
sf_sfclay_physics = 1, 1, 1,
sf_surface_physics = 2, 2, 2,
bl_pbl_physics = 9, 1, 1,
bldt = 1, 0, 0,
cu_physics = 7, 5, 0,
cudt = 1, 1, 1,
shcu_physics = 2,
ishallow = 0,
isfflx = 1,
ifsnow = 1,
icloud = 1,
surface_input_source = 1,
num_soil_layers = 4,
num_land_cat = 20,
sf_urban_physics = 0, 0, 0,
mp_zero_out = 2,
mp_zero_out_thresh = 1.e-12
maxiens = 1,
maxens = 3,
maxens2 = 3,
maxens3 = 16,
ensdim = 144,
/
&fdda
/
&dynamics
rk_ord = 3,
w_damping = 1,
diff_opt = 1, 1, 1,
km_opt = 4, 4, 4,
diff_6th_opt = 0, 0, 0,
diff_6th_factor = 0.12, 0.12, 0.12,
base_temp = 290.
damp_opt = 0,
zdamp = 5000., 5000., 5000.,
dampcoef = 0.01, 0.2, 0.2
khdif = 0, 0, 0,
kvdif = 0, 0, 0,
non_hydrostatic = .true., .true., .true.,
moist_adv_opt = 2, 1, 1,
scalar_adv_opt = 2, 1, 1,
chem_adv_opt = 2, 1, 1,
time_step_sound = 4, 4, 4,
h_mom_adv_order = 5, 5, 5,
v_mom_adv_order = 3, 3, 3,
h_sca_adv_order = 5, 5, 5,
v_sca_adv_order = 3, 3, 3,
/
&bdy_control
spec_bdy_width = 5,
spec_zone = 1,
relax_zone = 4,
specified = .true., .false.,.false.,
nested = .false., .true., .true.,
/
&grib2
/
&namelist_quilt
nio_tasks_per_group = 0,
nio_groups = 1,
/
&chem
kemit = 6,
chem_opt = 503, 2,
bioemdt = 30,
photdt = 30, 30,
chemdt = 0, 2.,
io_style_emissions = 2,
emiss_inpt_opt = 104, 1,
emiss_opt = 9, 3,
emiss_opt_vol = 0, 0,
emiss_ash_hgt = 20000.,
chem_in_opt = 0, 0,
phot_opt = 2, 1,
gas_drydep_opt = 1, 1,
aer_drydep_opt = 1, 1,
bio_emiss_opt = 3, 1,
ne_area = 134,
depo_fact = 0.25,
dmsemis_opt = 0,
seas_opt = 0,
gas_bc_opt = 1, 1,
gas_ic_opt = 1, 1,
aer_bc_opt = 1, 1,
aer_ic_opt = 1, 1,
gaschem_onoff = 1, 1,
aerchem_onoff = 1, 1,
wetscav_onoff = 1, 0,
cldchem_onoff = 1, 0,
vertmix_onoff = 1, 1,
chem_conv_tr = 0,
conv_tr_wetscav = 1, 0,
conv_tr_aqchem = 1, 0,
biomass_burn_opt = 0, 0,
plumerisefire_frq = 30, 30,
aer_ra_feedback = 1, 0,
aer_op_opt = 1,
opt_pars_out = 1,
chemdiag = 0,
have_bcs_chem = .false., .false.,
cam_mam_mode = 3,
/
