the ratio of input data resolution to the coarsest grid resolution

This post was from a previous version of the WRF&MPAS-A Support Forum. New replies have been disabled and if you have follow up questions related to this post, then please start a new thread from the forum home page.

S

sd16121

Member
Dear Office,

I am a little bit confused about the following sentence in your "namelist.wps: Best Practices". Could you please take an example for me?

It's best to keep the ratio of input data resolution to the coarsest grid resolution (on your domain) to no more than 1:10

For full contents, see the attached.

Best wishes,
Stella


Attachments

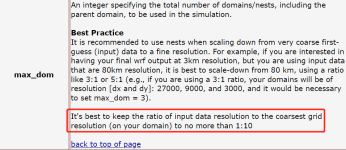

  • max_dom.png
    57.5 KB · Views: 371
Dear Colleagues,

If anyone could provide some suggestions about my question above? Your help will be highly appreciated.

Best,
Stella

Dear Colleagues,

Anyone can help with this issue? Looking forward to hearing from you soon.

Best wishes,
Stella

Hi Stella,
The sentence here means that there should be no more than a 10:1 ratio between the resolution of the input (first-guess, or outside model, such as GFS), and the resolution of domain 1 in your simulation. I agree the wording on that web page is a bit odd and confusing. I'll make a note to modify it for clarity. Thanks for pointing it out!
