WRF Crashes with Shinhong PBL scheme


New member
Hi all,

I am attempting a simulation with WRFV4.4 with the Shinhong PBL Scheme (11), however, I keep getting some errors relating to the surface physics. The current setup is tried with both Noah and NoahMP land surface models, but the model keeps crashing after a few hours into the simulation.

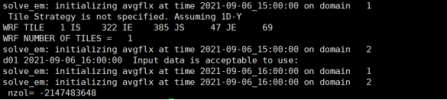

The previous attempt with the Noah LSM also gave a similar error in line 1341 in the module_sf_sfclayrev.F, and when I printed the nzol value when the model stopped, it was -2147483648.

When the same setup was tried with YSU PBL, the simulation was successful.


  • namelist.input
    8.9 KB · Views: 0
  • rsl.error.log
    25.2 KB · Views: 0
  • error .png
    error .png
    56 KB · Views: 1
